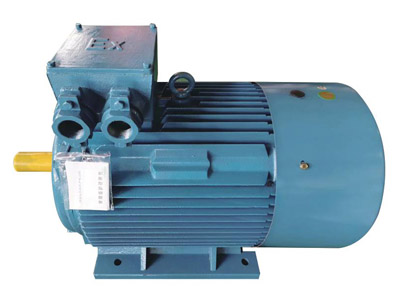

 Products >> YVF2 series three-phase frequency controlled asynchronous motor(80-355)

Product overview：
YVF2 series three-phase frequency controlled asynchronous motor possesses a wide range of speed regulation.It can match with a variety of convertor to compreise an A.C sleepless adjustable frequency driving system.At low speed（5-50Hz）,this motor can run smoothly under constant torque oscillation,and has a larger starting torque and a smaller starting current and delivers constant output power at high（50-100Hz）.Its mounting arrangements and mounting dimensions are all according to Y series three-phase asynchronous motor.As cooling fan in built in so under different speeds the cooling effects is good.

Working condition：
Operating ambient temperature：-15~+40℃
Altitude：not more than 1000m（over 1000m need special order）
Rated voltage：380V
Rated frequency：5-100Hz
Duty type：S1（continuous），allows starting with full voltage
Insulation class：F（other class should order）
Protection class：IP55
Type of cooling：IC416
Power 3kW and below the Y connection over △ connection

Technical data:

Type
Rated Power
(kW)
Current
(A)
Speed
(r/min)
Efficiency
（%）
Power
Factor
Mst
Mmax
Lst
Weight
(kg)
Mn
Mn
In
YVF2-80M1-2
0.75
1.77
2865
77.4
0.83
2.3
2.3
6.8
14
YVF2-80M2-2
1.1
2.43
2880
79.6
0.83
2.3
2.3
7.3
15
YVF2-90S-2
1.5
3.19
2900
81.3
0.85
2.3
2.3
7.6
21
YVF2-90L-2
2.2
4.59
2890
83.2
0.85
2.3
2.3
7.8
24
YVF2-100L-2
3
6.05
2860
84.6
0.87
2.2
2.3
7.8
33
YVF2-112M-2
4
7.9
2910
85.8
0.88
2.3
2.3
8.3
45
YVF2-132S1-2
5.5
10.7
2920
87.0
0.88
2.2
2.3
8.3
61
YVF2-132S2-2
7.5
14.5
2920
88.1
0.88
2.2
2.3
8.3
66
YVF2-160M1-2
11
20.75
2942
89.4
0.89
2.2
2.3
7.9
107
YVF2-160M2-2
15
28.05
2942
90.3
0.89
2.2
2.3
7.9
117
YVF2-160L-2
18.5
34.02
2942
90.9
0.90
2.2
2.3
8.1
137
YVF2-180M-2
22
40.3
2960
91.3
0.90
2.2
2.3
8.1
170
YVF2-200L1-2
30
54.5
2965
92.0
0.90
2.2
2.3
7.5
228
YVF2-200L2-2
37
66.9
2965
92.5
0.90
2.2
2.3
7.5
246
YVF2-225M-2
45
81.1
2965
92.9
0.90
2.2
2.3
7.6
309
YVF2-250M-2
55
98
2970
93.2
0.89
2.2
2.3
7.6
392
YVF2-280S-2
75
132
2975
93.8
0.91
2.0
2.3
6.9
544
YVF2-280M-2
90
158
2975
94.1
0.91
2.0
2.3
7.0
610
YVF2-315S-2
110
194
2975
94.3
0.91
1.8
2.2
7.1
925
YVF2-315M-2
132
231
2975
94.6
0.91
2.0
2.2
7.1
1040
YVF2-315L1-2
160
280
2975
94.8
0.91
2.0
2.2
7.1
1130
YVF2-315L2-2
200
350
2975
95.0
0.91
2.0
2.2
7.1
1200
.YVF2-355M-2
250
433
2980
95.0
0.92
1.6
2.2
7.1
1932
YVF2-355L-2
315
545
2980
95.0
0.92
1.6
2.2
7.1
2135

Type
Rated Power
(kW)
Current
(A)
Speed
(r/min)
Efficiency
（%）
Power
Factor
Mst
Mmax
Lst

Weight
(kg)
Mn
Mn
In
YVF2-80M1-4
0.55
1.38
1435
79.6
0.75
2.3
2.3
6.3
14
YVF2-80M2-4
0.75
1.85
1435
79.6
0.75
2.3
2.3
6.6
15
YVF2-90S-4
1.1
2.59
1435
81.4
0.77
2.3
2.3
6.8
21
YVF2-90L-4
1.5
3.48
1440
82.8
0.77
2.3
2.3
6.8
24
YVF2-100L1-4
2.2
4.78
1410
84.3
0.81
2.3
2.3
7.4
33
YVF2-100L2-4
3
6.37
1410
85.5
0.82
2.3
2.3
7.4
35
YVF2-112M-4
4
8.4
1455
86.6
0.82
2.3
2.3
7.5
43
YVF2-132S-4
5.5
11.3
1460
87.7
0.83
2.0
2.3
7.4
63
YVF2-132M-4
7.5
15.1
1460
88.7
0.84
2.0
2.3
7.4
76
YVF2-160M-4
11
21.86
1470
89.8
0.84
2.2
2.3
7.5
116
YVF2-160L-4
15
29.21
1470
90.6
0.85
2.2
2.3
7.5
130
YVF2-180M-4
18.5
35.4
1475
91.2
0.86
2.2
2.3
7.6
165
YVF2-180L-4
22
42.0
1475
91.6
0.86
2.2
2.3
7.8
180
YVF2-200L-4
30
56.8
1475
92.3
0.86
2.2
2.3
7.2
240
YVF2-225S-4
37
69.1
1480
92.7
0.87
2.2
2.3
7.3
284
YVF2-225M-4
45
83.7
1480
93.1
0.87
2.2
2.3
7.3
320
YVF2-250M-4
55
102
1480
93.5
0.87
2.2
2.3
7.4
415
YVF2-280S-4
75
138
1485
94.0
0.87
2.2
2.3
6.7
562
YVF2-280M-4
90
165
1485
94.2
0.87
2.2
2.3
6.9
660
YVF2-315S-4
110
199
1480
94.5
0.88
2.1
2.2
6.9
898
YVF2-315M-4
132
239
1480
94.7
0.88
2.1
2.2
6.9
96
YVF2-315L1-4
160
290
1480
94.9
0.88
2.2
2.2
6.9
1160
YVF2-315L2-4
200
362
1480
95.1
0.88
2.1
2.2
6.9
1270
YVF2-355M-4
250
442
1490
95.1
0.90
2.1
2.2
6.9
1914
YVF2-355L-4
315
559
1490
95.1
0.90
2.1
2.2
6.9
2392

Type
Rated Power
(kW)
Current
(A)
Speed
(r/min)
Efficiency
（%）
Power
Factor
Mst
Mmax
Lst

Weight
(kg)
Mn
Mn
In
YVF2-90S-6
0.75
2.04
950
75.9
0.72
2.0
2.1
5.9
21
YVF2-90L-6
1.1
2.87
950
78.1
0.73
2.0
2.1
5.9
24
YVF2-100L-6
1.5
3.78
950
79.8
0.74
2.0
2.1
5.5
31
YVF2-112M-6
2.2
5.3
955
81.8
0.76
2.1
2.1
6.2
45
YVF2-132S-6
3
7.1
970
83.3
0.76
2.0
2.1
6.8
60
YVF2-132M1-6
4
9.3
970
84.6
0.76
2.0
2.1
6.8
71
YVF2-132M2-6
5.5
12.4
970
86.0
0.77
2.0
2.1
6.8
80
YVF2-160M-6
7.5
16.63
976
87.2
0.77
2.1
2.1
6.7
110
YVF2-160L-6
11
23.81
976
88.7
0.78
2.1
2.1
6.9
131
YVF2-180L-6
15
31.0
980
89.7
0.81
2.1
2.1
7.2
173
YVF2-200L1-6
18.5
37.9
980
90.4
0.81
2.1
2.1
7.2
220
YVF2-200L2-6
22
43.8
980
91.9
0.83
2.1
2.1
7.5
233
YVF2-225M-6
30
58.7
985
91.7
0.84
2.0
2.1
7.1
292
YVF2-250M-6
37
71
980
92.2
0.85
2.1
2.1
7.1
382
YVF2-280S-6
45
85
990
92.7
0.86
2.1
2.0
7.2
521
YVF2-280M-6
55
104
990
93.1
0.86
2.1
2.0
7.2
581
YVF2-315S-6
75
141
990
93.7
0.86
2.0
2.0
6.7
806
YVF2-315M-6
90
168
990
94.0
0.86
2.0
2.0
6.7
958
YVF2-315L1-6
110
205
990
94.3
0.86
2.0
2.0
6.7
990
YVF2-315L2-6
132
242
990
94.6
0.87
2.0
2.0
6.7
1050
YVF2-355M1-6
160
292
990
94.8
0.88
1.9
2.0
6.8
1518
YVF2-355M2-6
200
365
990
95.0
0.88
1.9
2.0
6.8
1812
YVF2-355L-6
250
457
990
95.0
0.88
2.0
2.0
6.8
2070

Type
Rated Power
(kW)
Current
(A)
Speed
(r/min)
Efficiency
（%）
Power
Factor
Mst
Mmax
Lst
Weight
(kg)
Mn
Mn
In
YVF2-90S-8
0.55
2.17
670
63.0
0.61
1.8
2.0
4.0
28
YVF2-90L-8
0.75
2.39
680
71.0
0.67
1.8
2.0
4.0
30
YVF2-100L-8
1.1
3.32
680
73.0
0.69
1.8
2.0
5.0
32
YVF2-112M-8
1.5
4.40
690
75.0
0.69
1.8
2.0
5.0
40
YVF2-132S-8
2.2
6.00
705
78.0
0.71
1.8
2.0
6.0
58
YVF2-132M1-8
3
7.90
705
79.0
0.73
1.8
2.0
6.0
68
YVF2-132M2-8
4
10.3
720
81.0
0.73
1.9
2.0
6.0
98
YVF2-160M-8
5.5
13.6
720
83.0
0.74
2.0
2.0
6.0
110
YVF2-160L-8
7.5
17.8
720
85.5
0.75
2.0
2.0
6.0
132
YVF2-180L-8
11
25.1
730
87.5
0.76
2.0
2.0
6.6
176
YVF2-200L1-8
15
34.1
730
88.0
0.76
2.0
2.0
6.6
232
YVF2-200L2-8
18.5
41.1
730
90.0
0.76
1.9
2.0
6.6
268
YVF2-225M-8
22
47.4
730
90.5
0.78
1.9
2.0
6.6
288
YVF2-250M-8
30
63.4
735
91.0
1.9
2.0
6.6
372
YVF2-280S-8
37
77.8
735
91.5
0.79
1.9
2.0
6.6
472
YVF2-280M-8
45
94.0
735
92.0
0.79
1.9
2.0
6.6
530
YVF2-315S-8
55
111.2
735
92.8
0.81
1.8
2.0
6.6
804
YVF2-315M-8
75
151.3
735
93.0
0.81
1.8
2.0
6.6
1000
YVF2-315L1-8
90
177.8
735
93.8
0.82
1.8
2.0
6.6
1018
YVF2-315L2-8
110
216.8
735
94.0
0.82
1.8
2.0
6.4
1118
YVF2-355M1-8
132
261.0
740
93.7
0.82
1.8
2.0
6.4
1584
YVF2-355M2-8
160
314.7
740
94.2
0.82
1.8
2.0
6.4
1734
YVF2-355L-8
200
387.4
740
94.5
0.73
1.8
2.0
6.4
2250

Dimension Drawing:
